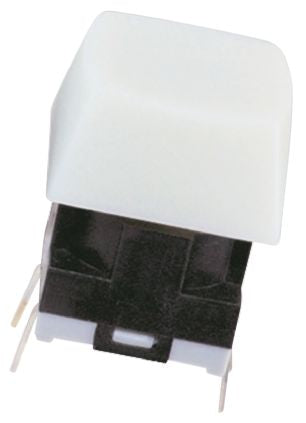

![NKK Switches JB-15HANP2-KWS 198025](http://nguyenxuong.com/cdn/shop/products/R0198025-80_306x423.jpg?v=1594391376)
IP67 Tactile Switch, SPST 125 mA@ 24 V dc 3.3mm [JB-15HANP2-KWS]; 198-025
by NKK Switches
0₫
Mã kho: 198025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SPST |
Terminal Type | Through Hole |
Switch Operation | Off-(On) |
Actuator Length | 3.3mm |
Actuator Type | Tactile |
Contact Current Rating | 125 mA@ 24 V dc |
IP Rating | IP67 |
Operating Force | 2.65 N |
Maximum Operating Temperature | +70°C |
Mechanical Life | 1000000Operations |
Operating Temperature Range | -25 → +70°C |
Minimum Operating Temperature | -25°C |
Contact Material | Silver Plated Brass (Stationary); Silver Plated Beryllium Copper (Movable) |
