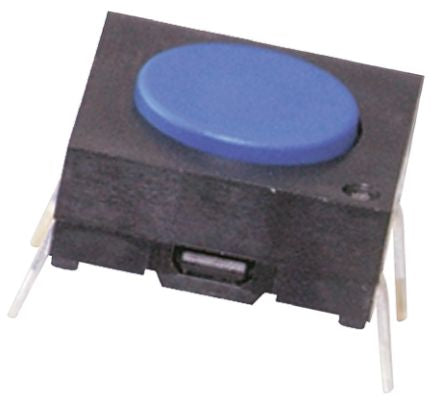

IP67 Tactile Switch, SPST 50 mA@ 24 V dc 0.7mm [JB-15FBP2]; 197-987
by NKK Switches
0₫
Mã kho: 197987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Through Hole |
| Switch Operation | Off-(On) |
| Actuator Length | 0.7mm |
| Actuator Type | Tactile |
| Contact Current Rating | 50 mA@ 24 V dc |
| IP Rating | IP67 |
| Operating Force | 1.76 N |
| Minimum Operating Temperature | -25°C |
| Mechanical Life | 5000000Operations |
| Operating Temperature Range | -25 → +70°C |
| Contact Material | Silver Plated Brass (Stationary); Silver Plated Beryllium Copper (Movable) |
| Maximum Operating Temperature | +70°C |
