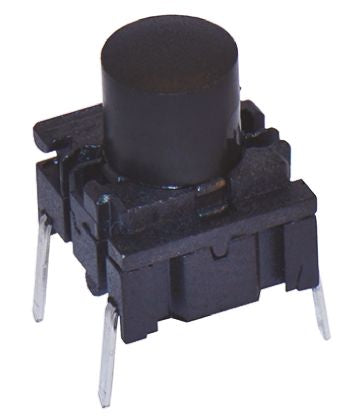

IP67 Black Cap Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 24 V dc [5GTH935+1SS09-12.0]; 765-1582
by MEC
0₫
Mã kho: 7651582
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder, Tab |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Type | Cap |
| Contact Current Rating | 50 mA @ 24 V dc |
| IP Rating | IP67 |
| Operating Force | 3.5 N |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 10000000Cycles |
| Operating Temperature Range | -40 → +160°C |
| Contact Material | SnCu+2μNI+1μAu, SnCu+2μNI+3μAg |
| Maximum Operating Temperature | +160°C |
| Height | 12mm |
