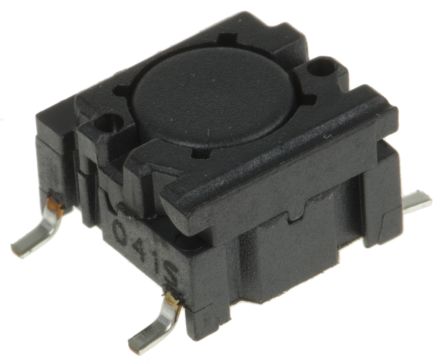

IP67 Plunger Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 24 V dc [3ASH9]; 495-2107
by MEC
0₫
Mã kho: 4952107
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | Through Hole |
Switch Operation | Momentary |
Actuator Type | Plunger |
Dimensions | 10.10 x 10.10 x 6.4mm |
Contact Current Rating | 50 mA @ 24 V dc |
IP Rating | IP67 |
Operating Force | 2.5 N |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +160°C |
Contact Material | Gold, Silver |
Mechanical Life | 10000000Operations |
Maximum Operating Temperature | +160°C |
Height | 6.4mm |
