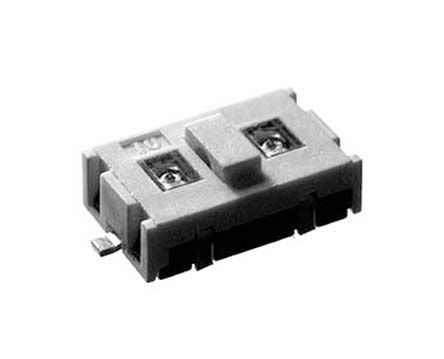

Black Tactile Switch, DPDT 50 mA @ 12 V dc 1.4mm Surface Mount [TSSJ 5-J]; 913-9122
0₫
Mã kho: 9139122
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Terminal Type | Pc Pin |
| Actuator Length | 1.4mm |
| Actuator Colour | Black |
| Actuator Type | Tactile |
| Length | 7.4mm |
| Width | 7.7mm |
| Dimensions | 7.4 x 7.7mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA @ 12 V dc |
| Operating Force | 1.6 (4 Direction) N, 3.2 (Center) N |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Contact Material | Stainless Steel |
| Voltage Rating | 12V dc |
