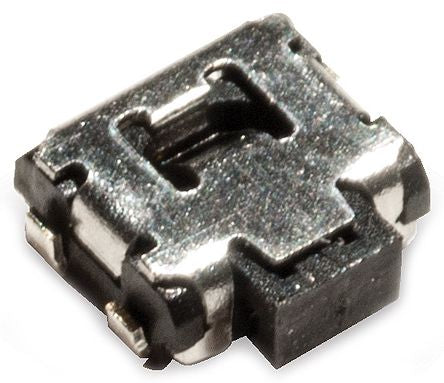

IP40 Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 1.7mm Surface Mount [PTS840 PK SMTR LFS]; 135-9211
by C & K
0₫
Mã kho: 1359211
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Gull Wing |
| Switch Operation | Momentary |
| Actuator Length | 1.7mm |
| Actuator Colour | Black |
| Actuator Type | Button |
| Length | 3.5mm |
| Width | 3.55mm |
| Dimensions | 3.55 x 3.5mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP40 |
| Operating Force | 220 gf |
| Operating Temperature Range | -40 → +85°C |
| Contact Material | Silver Plated |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 12V dc |
| Maximum Operating Temperature | +85°C |
