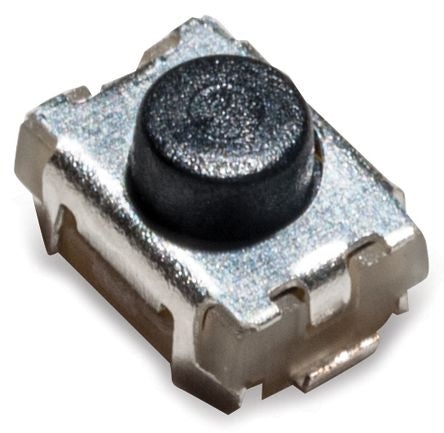

IP40 Grey Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 2 (Dia.)mm Surface Mount [PTS820 J15M SMTR LFS]; 135-9503
by C & K
0₫
Mã kho: 1359503
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | J Bend |
Switch Operation | Momentary |
Actuator Length | 2 (Dia.)mm |
Actuator Colour | Grey |
Actuator Type | Button |
Length | 3.9mm |
Width | 2.9mm |
Dimensions | 3.9 x 2.9mm |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA |
IP Rating | IP40 |
Operating Force | 160 gf |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 → +85°C |
Contact Material | Silver Plated |
Voltage Rating | 12V dc |
Minimum Operating Temperature | -40°C |
