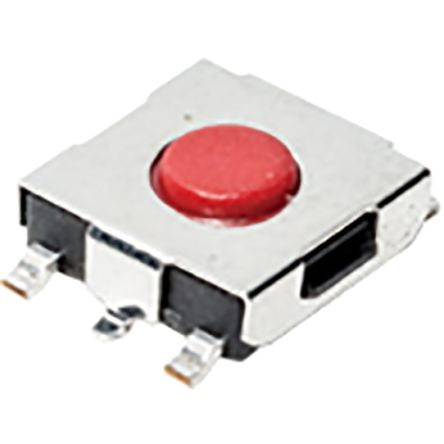

IP40 Top Tactile Switch, Single Pole Single Throw (SPST) 50 mA 3.4mm Surface Mount [PTS641 SP34 SMTR2 LFS]; 176-9453
by C & K
0₫
Mã kho: 1769453
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | SMT |
Switch Operation | Momentary |
Actuator Length | 3.4mm |
Actuator Type | Top |
Length | 6.3mm |
Width | 6.4mm |
Dimensions | 6.3 x 6.4mm |
Illuminated | No |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA |
IP Rating | IP40 |
Operating Force | 320 gf |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -20 → +85°C |
Voltage Rating | 12V dc |
Contact Material | Silver |
