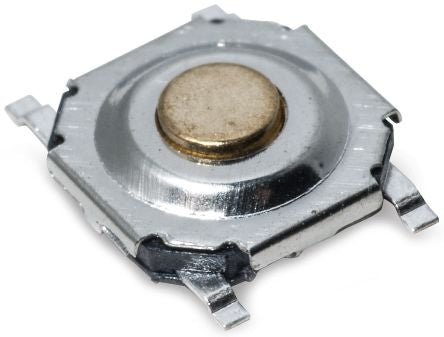

IP40 Gold Button Tactile Switch, Single Pole Single Throw (SPST) 20 mA 2 (Dia.)mm Surface Mount [PTS525 SKG15J SMTR2 LFS]; 135-9138
by C & K
0₫
Mã kho: 1359138
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | J Bend |
| Switch Operation | Momentary |
| Actuator Length | 2 (Dia.)mm |
| Actuator Colour | Gold |
| Actuator Type | Button |
| Length | 5.2mm |
| Width | 5.2mm |
| Dimensions | 5.2 x 5.2mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 20 mA |
| IP Rating | IP40 |
| Operating Force | 260 gf |
| Minimum Operating Temperature | -20°C |
| Contact Material | Silver Plated |
| Operating Temperature Range | -20 → +70°C |
| Maximum Operating Temperature | +70°C |
| Voltage Rating | 15V dc |
