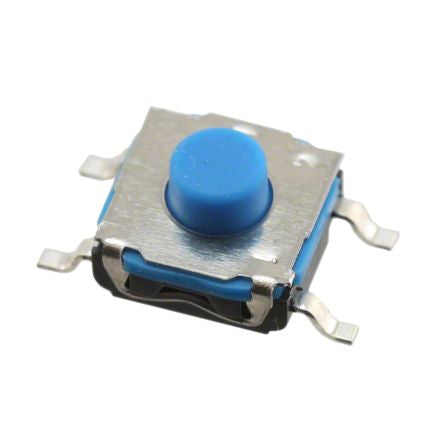

IP67 Tactile Switch, Single Pole Single Throw (SPST) 50 mA 1.4mm Surface Mount [KSC721G LFS]; 894-9152
by C & K
0₫
Mã kho: 8949152
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Gull Wing |
| Switch Operation | Momentary |
| Actuator Length | 1.4mm |
| Actuator Type | Tactile |
| Length | 6.2mm |
| Width | 6.2mm |
| Dimensions | 6.2 x 6.2 x 4.3mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 2.25±0.55 N |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 300000Operations |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
| Operating Temperature Range | -40 → +85°C |
| Height | 4.3mm |
| Voltage Rating | 32V dc |
