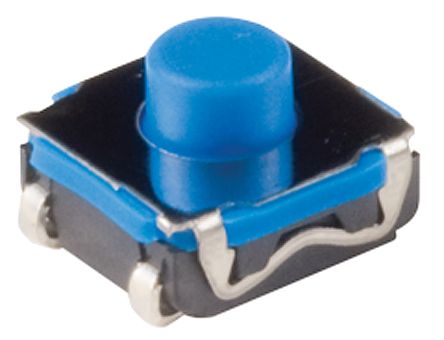

IP67 Blue Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 3 (Dia.)mm Surface Mount [KSC701J LFS]; 135-9530
by C & K
0₫
Mã kho: 1359530
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | J Bend |
Switch Operation | Momentary |
Actuator Length | 3 (Dia.)mm |
Actuator Colour | Blue |
Actuator Type | Button |
Length | 6.8mm |
Width | 6.8mm |
Dimensions | 6.8 x 6.8mm |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA |
IP Rating | IP67 |
Operating Force | 1.6 N |
Maximum Operating Temperature | +85°C |
Voltage Rating | 32V dc |
Operating Temperature Range | -40 → +85°C |
Contact Material | Silver Plated |
Minimum Operating Temperature | -40°C |
