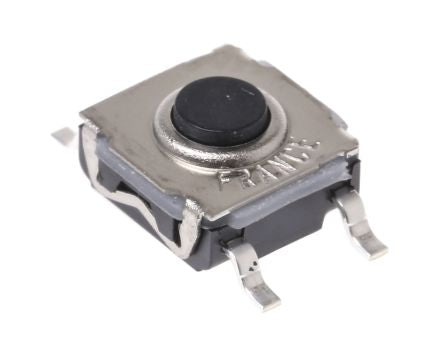

IP67 Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 32 V dc 0.57mm Surface Mount [KSC341G LFS]; 793-1645
by C & K
0₫
Mã kho: 7931645
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
| Actuator Length | 0.57mm |
| Actuator Type | Tactile |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA @ 32 V dc |
| IP Rating | IP67 |
| Operating Force | 3.75 N |
| Mechanical Life | 300000Cycles |
| Maximum Operating Temperature | +85°C |
| Voltage Rating | 32V dc |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Plated |
| Operating Temperature Range | -40 → +85°C |
