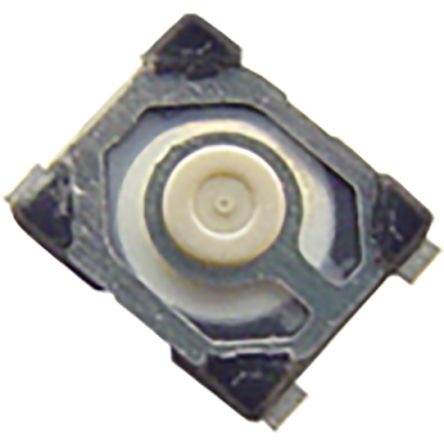

IP54 Top Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.65mm Surface Mount [KMT221NG HF LFS]; 176-9515
by C & K
0₫
Mã kho: 1769515
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | SMT |
Switch Operation | Momentary |
Actuator Length | 0.65mm |
Actuator Type | Top |
Length | 3mm |
Width | 2.6mm |
Dimensions | 3 x 2.6mm |
Illuminated | No |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA |
IP Rating | IP54 |
Operating Force | 1.6 N, 160 gf |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Voltage Rating | 32V dc |
Operating Temperature Range | -40 → +85°C |
Contact Material | Silver |
