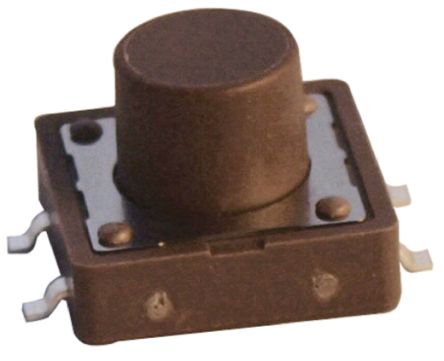

Brown Cap Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc [DTSM25NV]; 765-1090
by Apem
0₫
Mã kho: 7651090
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Terminal Type | Solder, Tab |
Switch Operation | Momentary |
Actuator Colour | Brown |
Actuator Type | Cap |
Contact Current Rating | 50 mA @ 12 V dc |
Operating Force | 160 gf |
Minimum Operating Temperature | -25°C |
Contact Material | Phosphor Bronze |
Operating Temperature Range | -25 → +70°C |
Maximum Operating Temperature | +70°C |
Height | 8.5mm |
