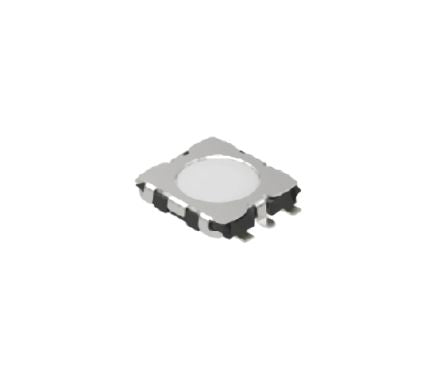

White Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA Surface Mount [SKSKPBE010]; 917-4046
by Alps Alpine
0₫
Mã kho: 9174046
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Type | Button |
| Length | 3.5mm |
| Width | 3.2mm |
| Dimensions | 3.5 x 3.2mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| Operating Force | 0.6 N, 1.6 N |
| Voltage Rating | 12V dc |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
