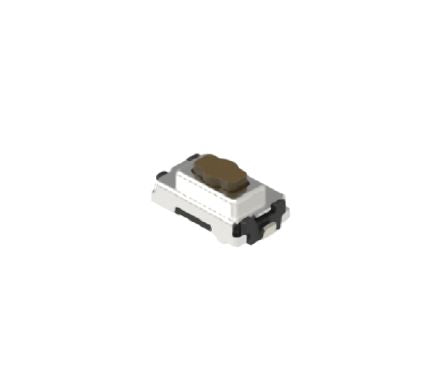

Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA Surface Mount [SKQYPBE010]; 917-4028
by Alps Alpine
0₫
Mã kho: 9174028
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Type | Button |
| Length | 6.1mm |
| Width | 3.7mm |
| Dimensions | 6.1 x 3.7mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| Operating Force | 2.55 N |
| Operating Temperature Range | -40 → +90°C |
| Voltage Rating | 12V dc |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -40°C |
| Height | 2.5mm |
