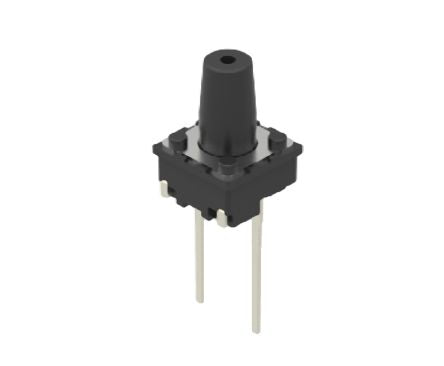

Grey Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 5.8mm Through Hole [SKQKAKD010]; 917-3863
by Alps Alpine
0₫
Mã kho: 9173863
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 5.8mm |
| Actuator Colour | Grey |
| Actuator Type | Button |
| Length | 6.6mm |
| Width | 6.6mm |
| Dimensions | 6.6 x 6.6mm |
| Mounting Type | Through Hole |
| Contact Current Rating | 50 mA |
| Operating Force | 1.57 N |
| Operating Temperature Range | -20 → +70°C |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Voltage Rating | 12V dc |
