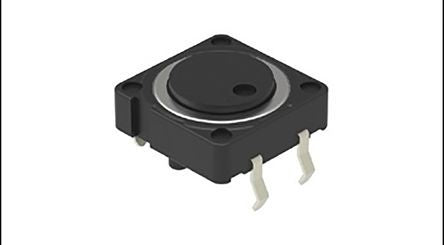

Black Flat Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 0.8mm PCB [SKHCBFA010]; 123-9633
by Alps Alpine
0₫
Mã kho: 1239633
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | PC Pin |
| Switch Operation | Momentary |
| Actuator Length | 0.8mm |
| Actuator Colour | Black |
| Actuator Type | Flat Button |
| Length | 12mm |
| Width | 12mm |
| Dimensions | 12 x 12mm |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA @ 12 V dc |
| Operating Force | 1.27 N |
| Voltage Rating | 12V dc |
| Mechanical Life | 1000000Cycles |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
