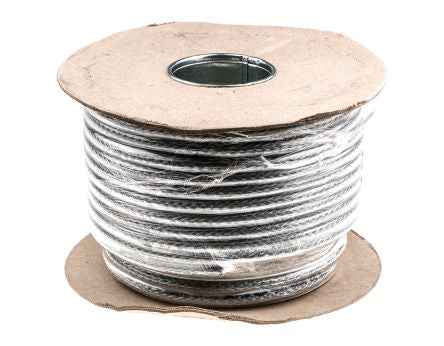

RS PRO 3 Core SY Control Cable 1.5 mm², 50m, Screened; 522-531
by RS PRO
0₫
Mã kho: 522531
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 1.5 mm² |
| Outer Diameter | 9.4mm |
| Current Rating | 0.375 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Voltage Rating | 300/500 V |
| Core Strands | 30/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Transparent |
| Earth Cable | No |
| Screen Type | Galvanised Steel |
| Bedding Material | PVC |
| Minimum Bend Radius | 8 x Diameter |
| Length | 50m |
| Filler Material | Chalk |
| Insulation Material | PVC |
| Conductor Resistance | 13.7 Ω/km |
| Conductor Material | Copper |
| American Wire Gauge | 15 |
| Screened/Unscreened | Screened |
