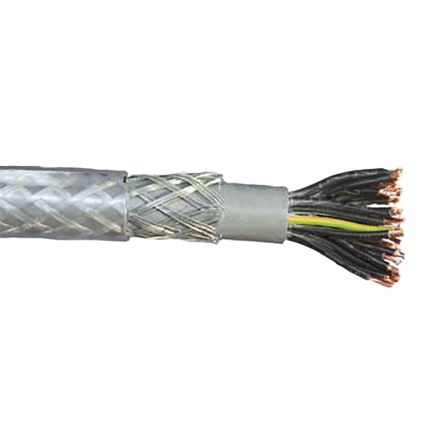

Lapp Lapp Olflex Classic 110 SY 12 Core SY Control Cable 1.5 mm², 50m, Screened [1125312]; 454-8837
by Lapp
0₫
Mã kho: 4548837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 1.5 mm² |
| Outer Diameter | 14.8mm |
| Current Rating | 18 A |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Voltage Rating | 300/500 V |
| Core Strands | 30/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Transparent |
| Earth Cable | Yes |
| Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D |
| Series | ÖLFLEX CLASSIC 110 SY |
| Length | 50m |
| Oil Resistant | Yes |
| Filler Material | Non-Wicking Filler |
| Insulation Material | PVC |
| Conductor Resistance | 13.5 Ω/km |
| American Wire Gauge | 16 AWG |
| Screened/Unscreened | Screened |
| Screen Type | Galvanised Steel Braid |
| Bedding Material | PVC |
| Conductor Material | Copper |
