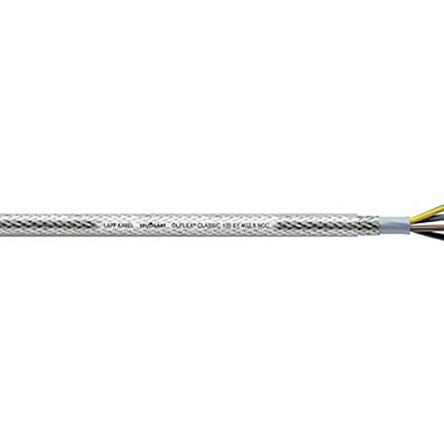

Lapp Lapp Olflex Classic 100 SY 3 Core SY Control Cable 2.5 mm², 100m, Screened [0016088]; 455-0098
by Lapp
0₫
Mã kho: 4550098
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 2.5 mm² |
| Outer Diameter | 12.6mm |
| Current Rating | 26 A |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Voltage Rating | 450/750 V |
| Core Strands | 50/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Transparent |
| Earth Cable | Yes |
| American Wire Gauge | 13 |
| Screened/Unscreened | Screened |
| Screen Type | Galvanised Steel Braid |
| Bedding Material | PVC |
| Conductor Material | Copper |
| Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D |
| Series | ÖLFLEX CLASSIC 100 SY |
| Oil Resistant | Yes |
| Length | 100m |
| Filler Material | Non-Wicking Filler |
| Conductor Resistance | 7.98 Ω/km |
| Insulation Material | PVC |
