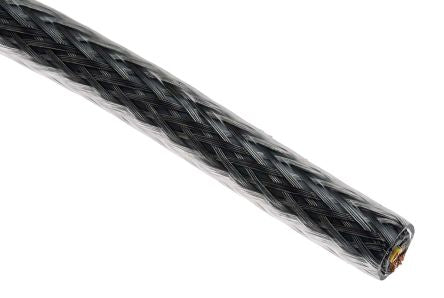

Belden Belden SY 4 Core SY Control Cable 1.5 mm², 100m, Screened [SYSD04.01100]; 514-3972
by Belden
0₫
Mã kho: 5143972
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 1.5 mm² |
| Outer Diameter | 11.7mm |
| Current Rating | 16 A |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +70°C |
| Voltage Rating | 300/500 V |
| Core Strands | 30/0.25 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Transparent |
| Earth Cable | Yes |
| Screened/Unscreened | Screened |
| American Wire Gauge | 15 AWG |
| Conductor Resistance | 13.3 Ω/km |
| Insulation Material | PVC |
| Oil Resistant | No |
| Series | Belden SY |
| Minimum Bend Radius | 10 x Diameter |
| Conductor Material | Copper |
| Bedding Material | PVC |
| Screen Type | Galvanised Steel Braid |
| Length | 100m |
