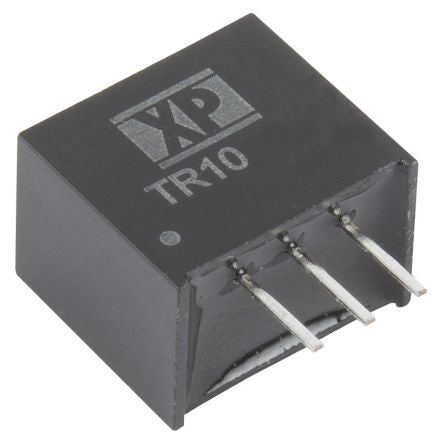

XP Power Switching Regulator, 7 → 28V dc Input, 3.3V dc Output, 1A [TR10S3V3]; 134-6944
by XP Power
0₫
Mã kho: 1346944
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 7 → 28V dc |
Output Voltage | 3.3V dc |
Number of Outputs | 1 |
Output Current | 1A |
Mounting Type | Through Hole |
Package | SIP |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 0.9 |
MTBF | 3.8 (Minimum)Mh |
Load Regulation | 0.015 |
Line Regulation | 0.01 |
Ripple And Noise | 100mV Pk-Pk |
Width | 10.16mm |
Maximum Input Current | 530mA |
Power Signal Conversion Type | DC-DC |
Weight | 2.1g |
Depth | 7.5mm |
Switching Frequency Range | 330kHz |
Protection Features | Short Circuit Protection |
Standards Met | EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
Special Features | Class B Conducted & Radiated Emissions, Wide Input Range to 28 V, 3 Year Warranty, 3-Pin Switching Regulator |
Length | 11.68mm |
Series | TR10 |
