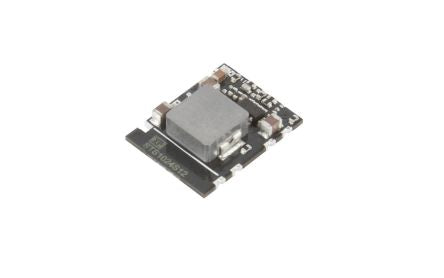

XP Power Switching Regulator, 12 → 36V dc Input, 9V dc Output, 1A [STS1024S09]; 178-3465
by XP Power
0₫
Mã kho: 1783465
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 12 → 36V dc |
Output Voltage | 9V dc |
Number of Outputs | 1 |
Output Current | 1A |
Power Rating | 1W |
Mounting Type | Surface Mount |
Package | SMD |
Minimum Temperature | -40°C |
Maximum Temperature | +105°C |
Efficiency | 0.955 |
MTBF | 3.5 (Minimum)Mh |
Load Regulation | ±0.6% |
Line Regulation | ±0.2% |
Ripple And Noise | 75mV Pk-Pk |
Width | 11.8mm |
Maximum Input Current | 900mA |
Length | 15.2mm |
Series | STS10 |
Power Signal Conversion Type | DC-DC |
Weight | 1.4g |
Protection Features | Short Circuit Protection |
Depth | 3.6mm |
