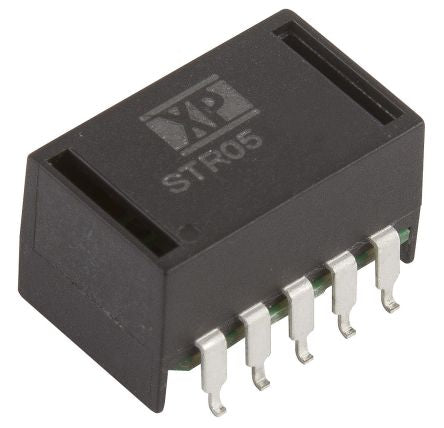

XP Power Switching Regulator, 8 → 32V dc Input, 6.5V dc Output, 500mA [STR05S6V5]; 122-4618
by XP Power
0₫
Mã kho: 1224618
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 8 → 32V dc |
| Output Voltage | 6.5V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Power Rating | 3.25W |
| Mounting Type | Surface Mount |
| Package | SMD |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Efficiency | 0.88 |
| MTBF | 2Mh |
| Load Regulation | ±0.6% |
| Line Regulation | ±0.4% |
| Ripple And Noise | 30mV Pk-Pk |
| Rated Output Power | 3.25W |
| Power Signal Conversion Type | DC-DC |
| Weight | 1.7g |
| Switching Frequency Range | 280 → 380kHz |
| Width | 9.6mm |
| Protection Features | Short Circuit Protection |
| Maximum Input Current | 5mA |
| Depth | 8.8mm |
| Special Features | Wide Input Range |
| Output Voltage Adjustment Range | 3.3-11.0V |
| Series | STR |
| Length | 15.3mm |
