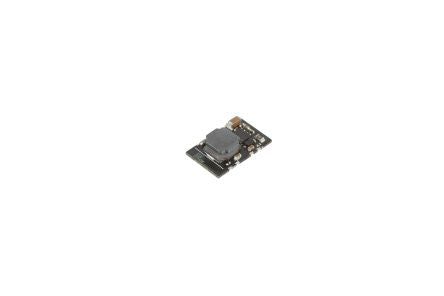

Switching Regulator 14-72Vin 9Vout 0.5A [STH0548S09]; 188-2978
by XP Power
0₫
Mã kho: 1882978
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 14 → 72V dc |
| Output Voltage | 9V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Mounting Type | Surface Mount |
| Package | SMD |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Efficiency | 84 % @ 72 V |
| MTBF | 4.8 (Minimum)Mh |
| Load Regulation | ±1% |
| Line Regulation | ±1% |
| Ripple And Noise | 75mV Pk-Pk |
| Width | 11.8mm |
| Maximum Input Current | 74 mA @ 72 V |
| Length | 19.5mm |
| Series | STH05 |
| Power Signal Conversion Type | DC-DC |
| Switching Frequency Range | 550kHz |
| Protection Features | Short Circuit Protection |
| Depth | 5mm |
| Weight | 1.8g |
