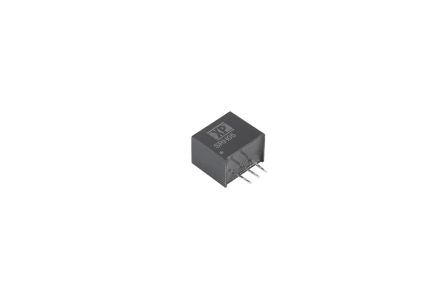

XP Power DC-DC Switching Regulator, 9 → 72V dc Input, 6.5V dc Output, 500mA [SRH05S6V5]; 174-4664
by XP Power
0₫
Mã kho: 1744664
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 9 → 72V dc |
| Output Voltage | 6.5V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 83 %, 91 % |
| MTBF | 4.5Mh |
| Load Regulation | 0.006 |
| Line Regulation | 0.01 |
| Ripple And Noise | 75mV Pk-Pk |
| Maximum Input Current | 3 mA, 55 mA, 395 mA |
| Width | 10.16mm |
| Depth | 7.5mm |
| Switching Frequency Range | 120 → 800kHz |
| Protection Features | Short Circuit Protection |
| Weight | 2.1g |
| Length | 11.68mm |
| Series | SRH05 |
| Power Signal Conversion Type | DC-DC |
| Standards Met | EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
