![XP Power SR10S2V5 1227220](http://nguyenxuong.com/cdn/shop/products/R1227220-01_b52c11d5-97d5-4e36-aed9-8e1c2bba6876_444x425.jpg?v=1594299250)

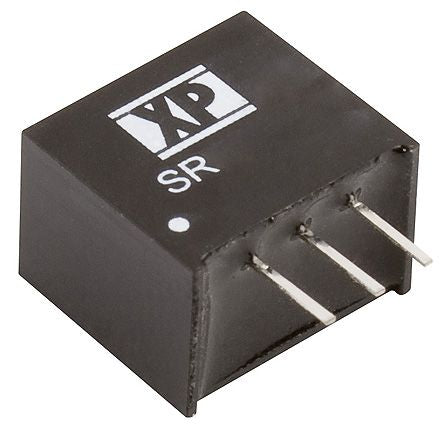

XP Power DC-DC Switching Regulator, 4.75 → 18V dc Input, 2.5V dc Output, 1A [SR10S2V5]; 122-7220
by XP Power
0₫
Mã kho: 1227220
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 4.75 → 18V dc |
Output Voltage | 2.5V dc |
Number of Outputs | 1 |
Output Current | 1A |
Power Rating | 2.5W |
Mounting Type | Through Hole |
Package | SIP |
Minimum Temperature | -40°C |
Maximum Temperature | +60°C |
Efficiency | 0.87 |
MTBF | 4.5Mh |
Load Regulation | ±0.6% |
Line Regulation | ±0.5% |
Ripple And Noise | 60mV Pk-Pk |
Rated Output Power | 2.5W |
Weight | 1.8g |
Switching Frequency Range | 330kHz |
Protection Features | Short Circuit Protection |
Depth | 10.15mm |
Width | 7.5mm |
Maximum Input Current | 15 (No Load)mA |
Special Features | Pin Compatible with LM78MXX, Wide Input Range |
Length | 11.68mm |
Power Signal Conversion Type | DC-DC |
Series | SR |
