![XP Power SR05S05 1672764](http://nguyenxuong.com/cdn/shop/products/R1227211-01_444x425.jpg?v=1594372639)

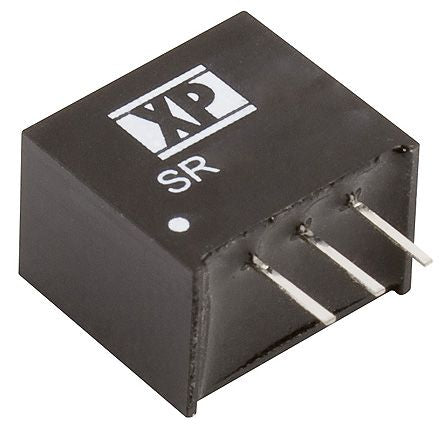

XP Power DC-DC Switching Regulator, 6.5 → 34V dc Input, 5V dc Output, 500mA [SR05S05]; 167-2764
by XP Power
0₫
Mã kho: 1672764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 6.5 → 34V dc |
Output Voltage | 5V dc |
Number of Outputs | 1 |
Output Current | 500mA |
Power Rating | 2.5W |
Mounting Type | Through Hole |
Package | SIP |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 0.94 |
MTBF | >4.5Mh |
Load Regulation | ±0.6% |
Line Regulation | ±0.5% |
Ripple And Noise | 60mV Pk-Pk |
Power Signal Conversion Type | DC-DC |
Weight | 1.8g |
Length | 11.68mm |
Switching Frequency Range | 330kHz |
Special Features | Pin Compatible with LM78MXX, Wide Input Range |
Rated Output Power | 2.5W |
Series | SR |
Width | 7.5mm |
Maximum Input Current | 10 (No Load)mA |
Depth | 10.15mm |
Protection Features | Short Circuit Protection |
