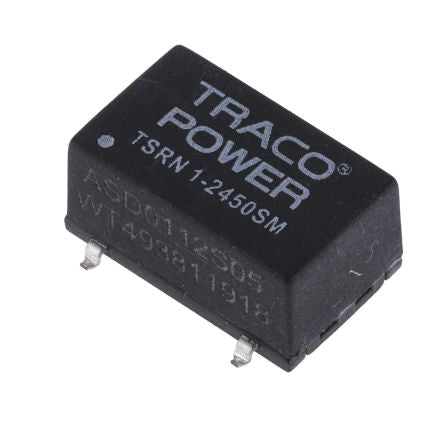

TRACOPOWER Switching Regulator, 4.6 → 31 V dc, 6.5 → 42 V dc Input, 5V dc Output, 1 A, 400 mA [TSRN 1-2450SM]; 124-7703
by TRACOPOWER
0₫
Mã kho: 1247703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 4.6 → 31 V dc, 6.5 → 42 V dc |
| Output Voltage | 5V dc |
| Number of Outputs | 1 |
| Output Current | 1 A, 400 mA |
| Mounting Type | Surface Mount |
| Package | SMD |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 78 %, 83 % |
| MTBF | 6000000h |
| Load Regulation | ±0.6% |
| Line Regulation | ±0.2% |
| Ripple And Noise | 50mV Pk-Pk |
| Weight | 1.7kg |
| Depth | 7.2mm |
| Width | 9.3mm |
| Length | 15.2mm |
