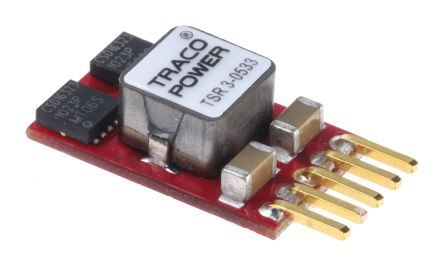

TRACOPOWER Switching Regulator, 2.5 → 5.5V dc Input, 0.6 → 3.3V dc Output, 3A [TSR 3-0533]; 781-3285
by TRACOPOWER
0₫
Mã kho: 7813285
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 2.5 → 5.5V dc |
| Output Voltage | 0.6 → 3.3V dc |
| Number of Outputs | 1 |
| Output Current | 3A |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.95 |
| MTBF | 1630000h |
| Load Regulation | 0.6 %, 0.8 %, 15 mV, 20 mV |
| Line Regulation | 0.2 %, 5 mV |
| Ripple And Noise | 30mV Pk-Pk |
| Weight | 1.7g |
| Width | 15.5mm |
| Depth | 6mm |
| Length | 9.4mm |
