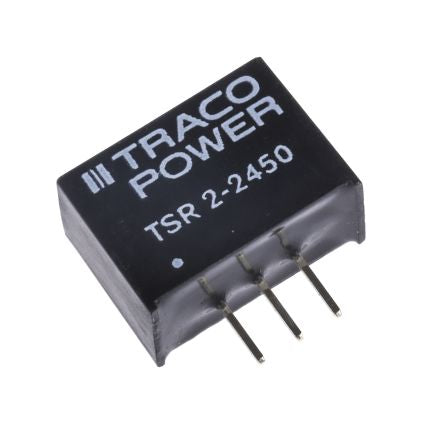

TRACOPOWER Switching Regulator, 6.5 → 36V dc Input, 5V dc Output, 2A [TSR 2-2450]; 166-6063
by TRACOPOWER
0₫
Mã kho: 1666063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 6.5 → 36V dc |
Output Voltage | 5V dc |
Number of Outputs | 1 |
Output Current | 2A |
Mounting Type | Through Hole |
Package | SIP |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 0.94 |
MTBF | 13520000h |
Load Regulation | Maximum of 1% |
Line Regulation | Maximum of 0.5% |
Ripple And Noise | 50mV Pk-Pk |
Length | 14mm |
Series | TSR 2 |
Standards Met | IEC/EN 60950-1, MIL-STD-810F, UL 60950-1, UL 94 V-0 |
Rated Output Power | 2W |
Power Signal Conversion Type | DC-DC |
Switching Frequency Range | 410kHz |
Weight | 2.6g |
Width | 7.5mm |
Protection Features | Over Temperature Protection, Overload Protection, Short Circuit Protection |
Depth | 10.1mm |
Maximum Input Current | 1mA |
