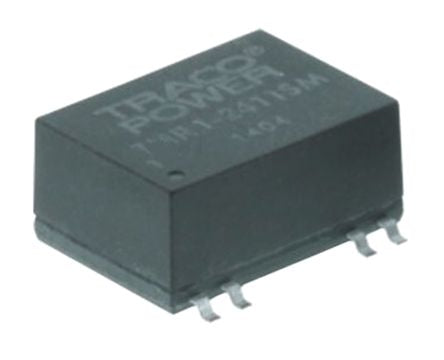

TRACOPOWER Switching Regulator, 9 → 36V dc Input, 6.5V dc Output, 1A [TSR 1-2465SM]; 827-5583
by TRACOPOWER
0₫
Mã kho: 8275583
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 9 → 36V dc |
| Output Voltage | 6.5V dc |
| Number of Outputs | 1 |
| Output Current | 1A |
| Mounting Type | Through Hole |
| Package | TO-220 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 87 % @ Vin max, 93 % @ Vin min |
| MTBF | >5350000h |
| Load Regulation | 0.006 |
| Line Regulation | 0.002 |
| Ripple And Noise | 50 (1.2 → 6.5 VDC Models) mV, 75 (9 → 15 VDC Models) mV |
| Length | 11.7mm |
| Depth | 7.6mm |
| Width | 10.2mm |
| Weight | 1.9g |
