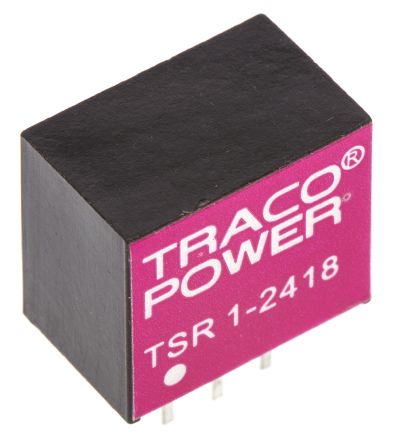

TRACOPOWER Switching Regulator, 4.6 → 36V dc Input, 1.8V dc Output, 1A [TSR 1-2418]; 166-5283
by TRACOPOWER
0₫
Mã kho: 1665283
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 4.6 → 36V dc |
| Output Voltage | 1.8V dc |
| Number of Outputs | 1 |
| Output Current | 1A |
| Power Rating | 1.8W |
| Mounting Type | Through Hole |
| Package | SIP 3 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 81 → 68% |
| MTBF | 5350000h |
| Load Regulation | ±0.4% |
| Line Regulation | ±0.2% |
| Ripple And Noise | 50mV Pk-Pk |
| Width | 7.6mm |
| Length | 11.7mm |
| Series | TSR 1 |
| Weight | 1.9g |
| Depth | 10.2mm |
