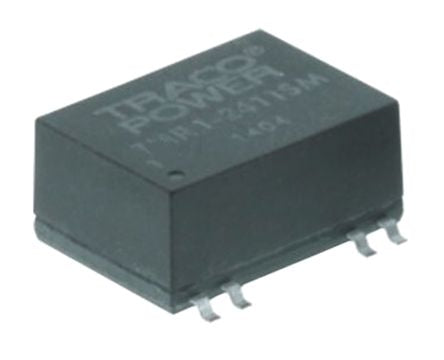

TRACOPOWER Switching Regulator, 15 → 36V dc Input, 12V dc Output, 1A [TSR 1-24120SM]; 166-6058
by TRACOPOWER
0₫
Mã kho: 1666058
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 15 → 36V dc |
Output Voltage | 12V dc |
Number of Outputs | 1 |
Output Current | 1A |
Mounting Type | Through Hole |
Package | TO-220 |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 92 % @ Vin max, 95 % @ Vin min |
MTBF | >5350000h |
Load Regulation | 0.006 |
Line Regulation | 0.002 |
Ripple And Noise | 50 (1.2 to 6.5 VDC Models) mV, 75 (9 to 15 VDC Models) mV |
Length | 11.7mm |
Depth | 7.6mm |
Width | 10.2mm |
Weight | 1.9g |
