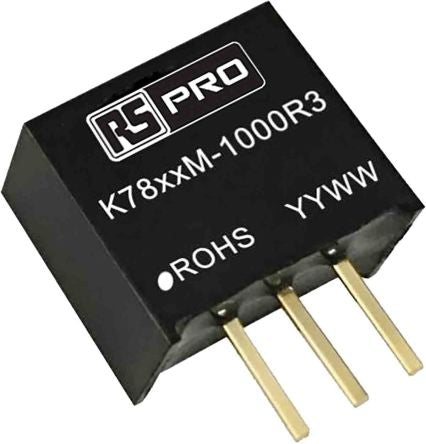

![RS PRO 1934010](http://nguyenxuong.com/cdn/shop/products/Y1934010-01_426x444.jpg?v=1594309192)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 16 → 36V dc |
Output Voltage | 12V dc |
Number of Outputs | 1 |
Output Current | 1A |
Mounting Type | PCB Mount |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 95/92% |
MTBF | 2000 (Minimum)kh |
Load Regulation | ±0.6% |
Line Regulation | ±0.4% |
Ripple And Noise | 75mV Pk-Pk |
Allowed Circuit Configurations | Parallel |
Maximum Input Current | 4mA |
Weight | 1.9 (Typ.)g |
Power Signal Conversion Type | DC-DC |
Depth | 10.4mm |
Length | 11.6mm |
Width | 8mm |
Switching Frequency Range | 520 (Typ.)kHz |
