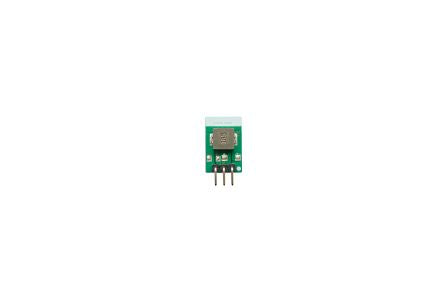

![RS PRO 1934000](http://nguyenxuong.com/cdn/shop/products/Y1934000-01_444x296.jpg?v=1594062869)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 16 → 36V dc |
Output Voltage | 12V dc |
Number of Outputs | 1 |
Output Current | 1A |
Mounting Type | PCB Mount |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 95/92% |
MTBF | 2000 (Minimum)kh |
Load Regulation | ±0.6% |
Line Regulation | ±0.4% |
Ripple And Noise | 75mV Pk-Pk |
Switching Frequency Range | 580 → 780kHz |
Length | 11.5mm |
Weight | 2.1 (Typ.)g |
Power Signal Conversion Type | DC-DC |
Allowed Circuit Configurations | Parallel |
Maximum Input Current | 1mA |
Width | 7.5mm |
Depth | 17.5mm |
