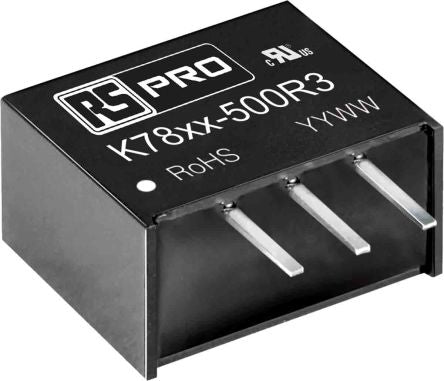

![RS PRO 1933975](http://nguyenxuong.com/cdn/shop/products/Y1933975-01_444x382.jpg?v=1594054816)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 6.5 → 36V dc |
Output Voltage | 5V dc |
Number of Outputs | 1 |
Output Current | 500mA |
Mounting Type | PCB Mount |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 90/84% |
MTBF | 2000 (Minimum)kh |
Load Regulation | ±0.6 (Typ.)% |
Line Regulation | ±0.4% |
Ripple And Noise | 75mV Pk-Pk |
Switching Frequency Range | 550 → 850kHz |
Width | 7.55mm |
Maximum Input Current | 1.5mA |
Weight | 1.8 (Typ.)g |
Power Signal Conversion Type | DC-DC |
Depth | 10.16mm |
Length | 11.6mm |
Allowed Circuit Configurations | Parallel |
