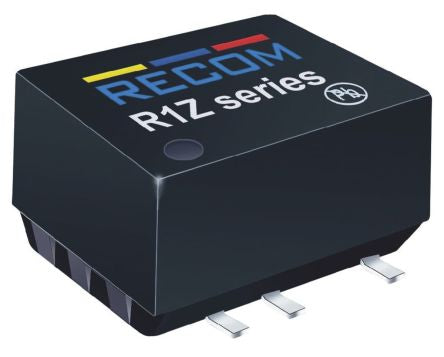

Recom DC-DC Switching Regulator, 4.5 → 5.5V dc Input, 5V dc Output, 200mA [R1Z-0505/P]; 162-2762
by Recom
0₫
Mã kho: 1622762
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 4.5 → 5.5V dc |
Output Voltage | 5V dc |
Number of Outputs | 1 |
Output Current | 200mA |
Power Rating | 1W |
Mounting Type | Surface Mount |
Package | SMD |
Minimum Temperature | -40°C |
Maximum Temperature | +70°C |
Efficiency | 0.6 |
MTBF | 2387 x 10³ (+25 °C)h |
Load Regulation | 0.01 |
Line Regulation | 0.01 |
Ripple And Noise | 100mV Pk-Pk |
Width | 8.7mm |
Weight | 1.6g |
Depth | 10.7mm |
Length | 15.24mm |
