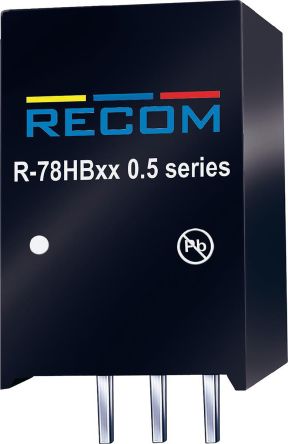

Recom DC-DC Switching Regulator, 17 → 72V dc Input, 12V dc Output, 500mA [R-78HB12-0.5/W]; 917-6620
by Recom
0₫
Mã kho: 9176620
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 17 → 72V dc |
| Output Voltage | 12V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.94 |
| MTBF | 7395000h |
| Load Regulation | 0.006 |
| Line Regulation | 0.01 |
| Ripple And Noise | 60mV Pk-Pk |
| Power Signal Conversion Type | DC-DC |
| Protection Features | Short Circuit Protection |
| Application | Industrial, Inverter |
| Maximum Input Current | 25mA |
| Depth | 17.5mm |
| Width | 8.5mm |
| Rated Output Power | 0.65W |
| Switching Frequency Range | 800kHz |
| Weight | 4g |
| Output Voltage Adjustment Range | -3 → +3% |
| Length | 11.5mm |
| Series | R-78HB |
| Standards Met | EN 55022, EN 55024, EN 60950-1, IEC 60950-1, LVD 1407030-1, UL 94 V-0 |
