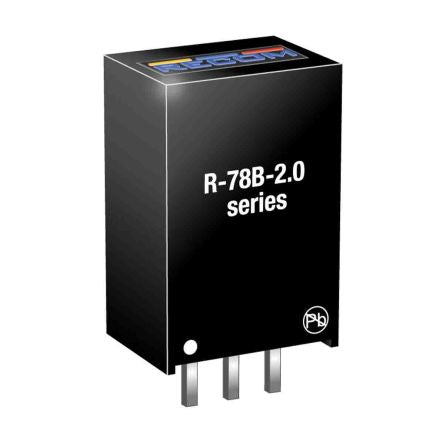

Recom Switching Regulator, 6.5 → 32V dc Input, 5V dc Output, 2A [R-78B5.0-2.0]; 139-2959
by Recom
0₫
Mã kho: 1392959
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 6.5 → 32V dc |
| Output Voltage | 5V dc |
| Number of Outputs | 1 |
| Output Current | 2A |
| Power Rating | 10W |
| Mounting Type | Through Hole |
| Package | SIP 3 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +70°C |
| Efficiency | 0.94 |
| MTBF | 6349000h |
| Load Regulation | ±1% |
| Line Regulation | ±0.5% |
| Ripple And Noise | 75mV Pk-Pk |
| Length | 11.5mm |
| Series | R-78B-2.0 |
| Standards Met | CB Report, EN 55022, IEC/EN 62368-1 |
| Power Signal Conversion Type | DC-DC |
| Maximum Input Current | 50mA |
| Width | 8.5mm |
| Depth | 8.5mm |
| Protection Features | Short Circuit Protection |
| Switching Frequency Range | 460kHz |
| Weight | 4g |
