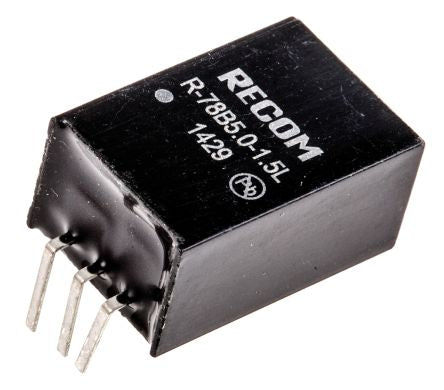

Recom Switching Regulator, 6.5 → 18V dc Input, 5V dc Output, 1.5A [R-78B5.0-1.5L]; 672-7152
by Recom
0₫
Mã kho: 6727152
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 6.5 → 18V dc |
| Output Voltage | 5V dc |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Power Rating | 7.5W |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.92 |
| MTBF | 3250000h |
| Load Regulation | ±0.8% |
| Line Regulation | ±0.5% |
| Ripple And Noise | 30mV Pk-Pk |
| Power Signal Conversion Type | DC-DC |
| Weight | 4g |
| Length | 11.5mm |
| Series | R-78B-1.5 |
| Depth | 8.5mm |
| Width | 17.5mm |
