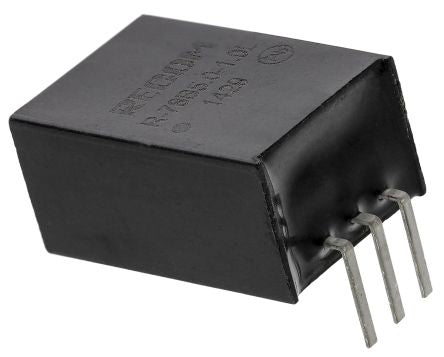

Recom Switching Regulator, 32V dc Input, 5V dc Output, 1A [R-78B5.0-1.0L]; 166-8999
by Recom
0₫
Mã kho: 1668999
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 6.5 → 32V dc |
Output Voltage | 5V dc |
Number of Outputs | 1 |
Output Current | 1A |
Power Rating | 5W |
Mounting Type | Through Hole |
Package | SIP |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
Efficiency | 0.93 |
MTBF | 6584000h |
Load Regulation | ±0.6% |
Line Regulation | ±0.4% |
Ripple And Noise | 20mV Pk-Pk |
Series | R-78B-1.0 |
Power Signal Conversion Type | DC-DC |
Depth | 8.5mm |
Width | 17.5mm |
Weight | 4g |
Length | 11.5mm |
