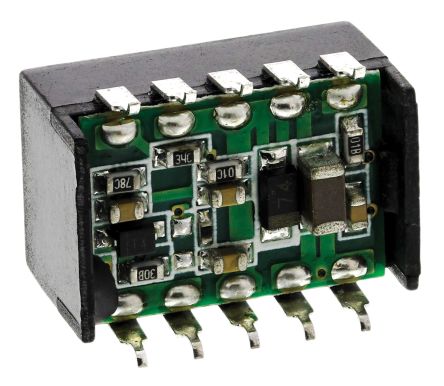

Recom Switching Regulator, 11 → 32V dc Input, 9V dc Output, 500mA [R-78AA9.0-0.5SMD]; 706-3944
by Recom
0₫
Mã kho: 7063944
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 11 → 32V dc |
| Output Voltage | 9V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Power Rating | 5W |
| Mounting Type | Surface Mount |
| Package | DIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.96 |
| MTBF | 21098000h |
| Load Regulation | 0.007 |
| Line Regulation | 0.001 |
| Ripple And Noise | 30mV Pk-Pk |
| Depth | 8.8mm |
| Width | 9.6mm |
| Length | 15.3mm |
| Weight | 2.7g |
