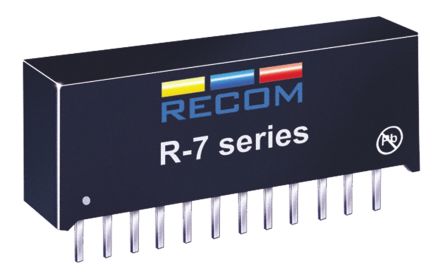

Recom Switching Regulator, 6.5 → 28V dc Input, 3 → 5.5V dc Output, 2A [R-745.0P]; 162-2714
by Recom
0₫
Mã kho: 1622714
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 6.5 → 28V dc |
| Output Voltage | 3 → 5.5V dc |
| Number of Outputs | 1 |
| Output Current | 2A |
| Power Rating | 1.4W |
| Mounting Type | Through Hole |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.91 |
| MTBF | 749 x 10³ (+25 °C)h |
| Load Regulation | 0.01 |
| Line Regulation | 0.01 |
| Ripple And Noise | 70mV Pk-Pk |
| Weight | 9g |
| Width | 9.1mm |
| Depth | 15mm |
| Length | 32.2mm |
