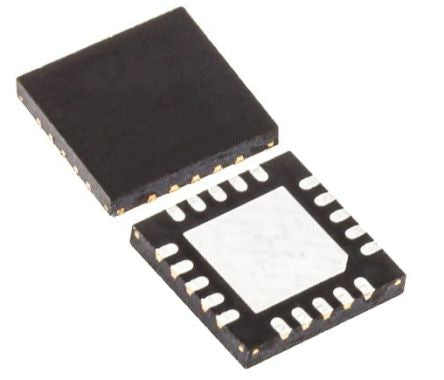

![Maxim Integrated MAX17504ATP+T 1908207](http://nguyenxuong.com/cdn/shop/products/P1908207-01_444x380.jpg?v=1594383308)
60V, 3A synchronous step-down converter [MAX17504ATP+T]; 190-8207
0₫
Mã kho: 1908207
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Input Voltage | 4.5 → 60V dc |
Output Voltage | 4.75 → 5.25V dc |
Number of Outputs | 1 |
Output Current | 3A |
Mounting Type | Surface Mount |
Minimum Temperature | -40°C |
Maximum Temperature | +125°C |
Efficiency | 0.9 |
Maximum Input Current | 4.5µA |
Length | 5mm |
Power Signal Conversion Type | DC-DC |
Switching Frequency Range | 90 → 2450kHz |
Depth | 0.75mm |
Width | 5mm |
