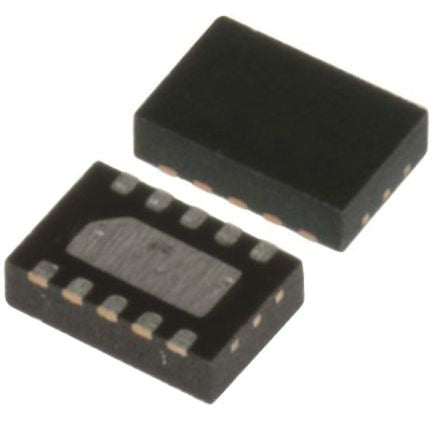

60V 1A 600kHz Step-Down DC-DC Converter [MAX17502FATB+T]; 190-8188
0₫
Mã kho: 1908188
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 4.5 → 60V dc |
| Output Voltage | 11.52 → 12.48V dc |
| Number of Outputs | 1 |
| Output Current | 1A |
| Mounting Type | Surface Mount |
| Minimum Temperature | -40°C |
| Maximum Temperature | +125°C |
| Efficiency | 0.9 |
| Depth | 0.75mm |
| Switching Frequency Range | 640kHz |
| Power Signal Conversion Type | DC-DC |
| Length | 3.1mm |
| Maximum Input Current | 1A |
| Width | 2.1mm |
| Application | Base Station, Battery-Powered Equipment, General-Purpose Point-of-Load, Home Theatre, HVAC and Building Control, Industrial Process Control, Telecom, VOIP |
