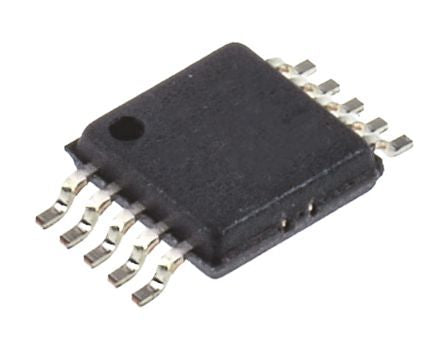

Low-Noise 5.5V PWM Step-Down Regulator [MAX1692EUB+]; 190-8143
0₫
Mã kho: 1908143
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 2.7 → 5.5V dc |
| Output Voltage | 1.22 → 1.27V dc |
| Number of Outputs | 1 |
| Output Current | 600mA |
| Mounting Type | Surface Mount |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Efficiency | 0.95 |
| Load Regulation | -0.013 |
| Line Regulation | 0.01 |
| Application | Cellular Phones CPU I/O Supplies, Cordless Phones Notebook Chipset Supplies, PDAs and Handy-Terminals Battery-Operated Devices |
| Power Signal Conversion Type | DC-DC |
| Depth | 0.95mm |
| Width | 3.11mm |
| Length | 3.16mm |
| Switching Frequency Range | 750kHz |
