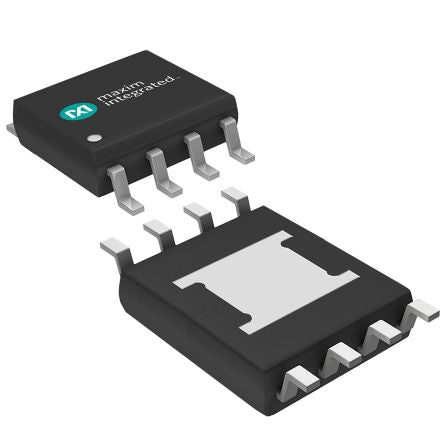

Reg 3.3V/5.0V Step-Up/Down Charge Pump [MAX1595EUA33+]; 190-7943
0₫
Mã kho: 1907943
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 1.8 → 5.5V dc |
| Output Voltage | 4.8 → 5.2V dc |
| Number of Outputs | 1 |
| Output Current | 125µA |
| Mounting Type | Surface Mount |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Depth | 0.95mm |
| Width | 3.1mm |
| Application | Backup-Battery Boost Converters, Battery-Powered Applications, Flash Memory Supplies, Miniature Equipment, PCMCIA Cards, White LED Power, 3V to 5V GSM SIMM Cards, 3.3V to 5V Local Conversion Applications |
| Length | 3.1mm |
