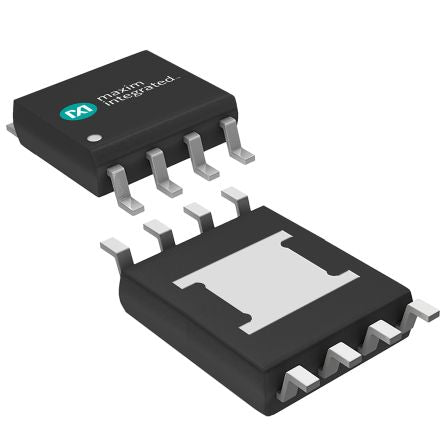

Switched-Capacitor Voltage Converters [ICL7660CUA+]; 190-7901
0₫
Mã kho: 1907901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage | 1.5 → 10V dc |
| Output Voltage | 3 → 10V dc |
| Number of Outputs | 1 |
| Output Current | 200µA |
| Mounting Type | Surface Mount |
| Minimum Temperature | 0°C |
| Maximum Temperature | +70°C |
| Efficiency | 99.9 (Typ.)% |
| Width | 3.1mm |
| Application | -5V Supply from +5V Logic Supply, Data-Acquisition, EIA/TIA-232E and, EIA/TIA-562 Power Supplies, Handheld Instruments, Op-Amp Power Supplies, Panel Meters, Personal Communications Equipment, Portable Telephones, Systems |
| Depth | 0.95mm |
| Length | 3.1mm |
